China Dough Laminating Machine manufacturer

65 Kw Dough Roller Machine , High Automatic Dough Sheeter With Sand Blasting Surface

Product Details:
Place of Origin: China
Brand Name: ZLINE
Model Number: ZKS 900
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case package
Delivery Time: 50 days after deposit
Payment Terms: T/T, L/C
Supply Ability: 5 sets / month
Contact Now

Detail Information

Product Name: Dough Sheeting Line Roller Width: 800 Mm
Power: 65 Kw Drawing: Available
Surface: Sand Blasting Custom-tailor: Available
Application: For Sheeting Kinds Of Bread Dough

Product Description


High Automation Industrial Dough Sheeting Line with Siemens PLC System



ZKS900 dough sheeting line provide a perfect dough sheeting solution for industrial bakeries .different dough types as the soft dough , yeast dough , pastry dough ,are all available . the dough band sheeting machine is matching well with wide variety of bread and pastries make-up line .




1 ) Spiral dough mixer is available , 200-300 kg capacity

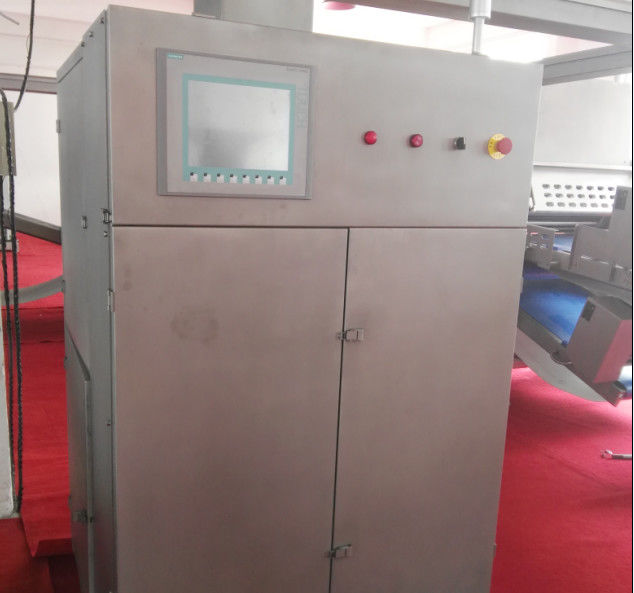

2 ) Siemens PLC touch screen on the electric carbinate

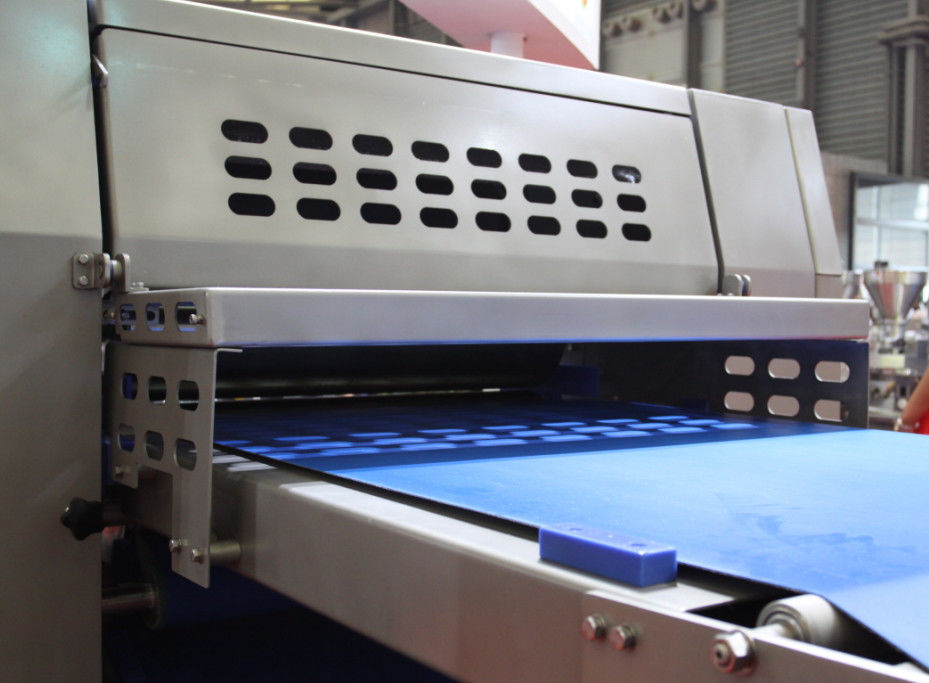

3 ) Robust multirollers , 12 satellite rollers and one big roller , well thinning the dough band


4 ) The whole line is made of hygienic grade 304 stainless steel ,easy to clean .


5 ) Dough former extruding the dough band , sensor control and thickness adjustable


6 ) World advanced technology fat pump , the size of fat extruding nozzle is adjustable .


7 ) The cutting hopper will cut the mixed dough into regular pieces ,normally 5 kg per piece.


8 ) 2 sets of laminating devices , 3-144 layers available , amplitude adjustable


9 ) Every phase conveyor belt is equiped with quick release mechanism for quick cleaning.


10) Double roller device well for dough band stress free


11) Can be configured for kinds of bread dough band sheeting


Applications  (for dough band sheeting )


1)   Pastry dough :  puff pastry , croissant, Danish  pastry etc .


2)   Bread dough :  Donut ,  burger , pizza , toast , baguette etc .


3)   Frozen bread dough block / Pastry dough block


65 Kw Dough Roller Machine , High Automatic Dough Sheeter With Sand Blasting Surface


65 Kw Dough Roller Machine , High Automatic Dough Sheeter With Sand Blasting Surface


ZKS900 dough sheeting line components


No. Items Brand Country
1 Conveyor belt AiAi PU belt Italy
2 Motor   Germany
3 Bearing seat FAG Germany
4 Bearing INA Germany
6 Touch screen Siemens UK
7 PLC Siemens Germany

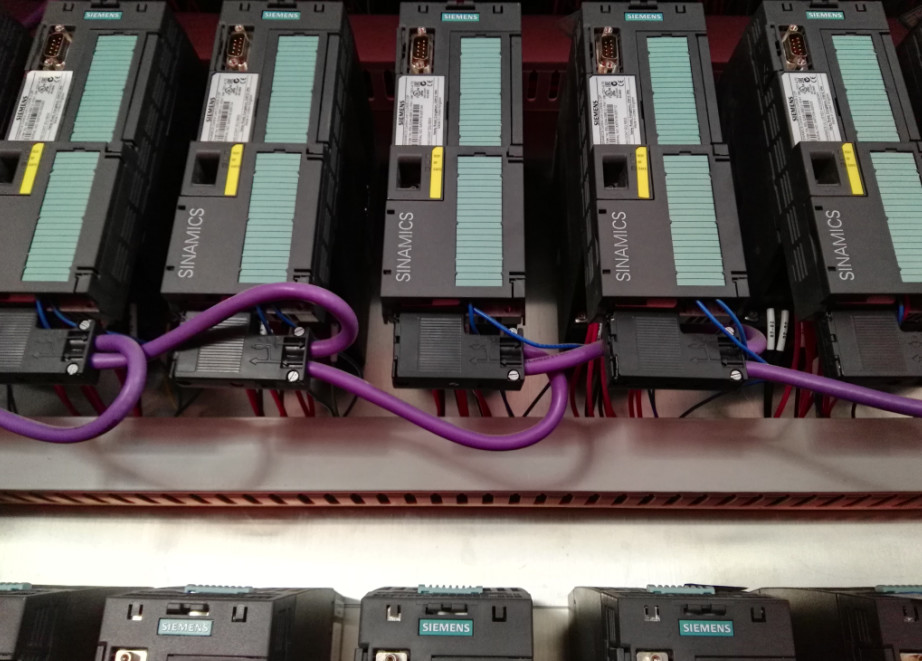

8 Frequency convertor Danfoss Germany
9 Switching power Siemens Switzerland
10 Low- voltage component Schneider France
11 Approach switch Omron Japan


Our Service
♦ After-sale service.

One year warranty, life-long maintenance;
24 hours online for technical consulting service;
Once there is any mechanical problem in the equipment, phone, on-line or on-site troubleshooting fault response plan will be provided.
♦ One year warranty time.

From the date when the product is qualified commissioning. Any damage except for the wrong operation during warranty period will be repaired freely. But the travel and hotel expenses should be paid by buyer.
♦ Oversea service

Engineers available to service machinery overseas.
♦ Response with 24 hours

We value every inquiry sent to us, ensure quick competitive offer within 24 hours.
♦ Complete documents

All necessary documents will be provided .
♦ Way of payment.

We accept multiple terms of payment, such as L/C, T/T, western Union, Money Gram, AlibabaTade Asurance.
