|Place of Origin:||China|
|Model Number:||ZDN 900|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||wooden case package|
|Delivery Time:||within 60 days after deposit|
|Payment Terms:||T/T, Western Union, L/C|
|Supply Ability:||4 sets / month|
|Product Name:||Donut Line||Capacity:||1000 - 20000 Pcs / Hr|
|Product Weight:||20g - 100 G||Cutter:||Hexagon|
|Application:||Donut Sheeting System|
1. Product description :

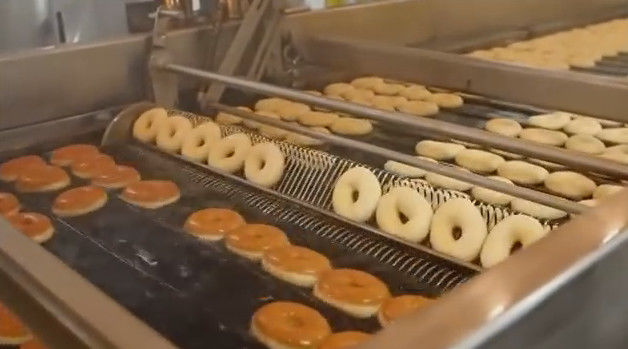

ZDN 900 donut line is mainly used to produce kinds of donut with different dough type ,different size .
the quality of donut is to great extent depend on the quality of dough band , during the dough band sheeting process , we supply wide solution according to need .
1 ) The dough would be mixed by a 5 bag flour volume spiral mixer
2 ) The thickness of dough band is adjustable manually
3 ) The number of multirollers can be configured differently for different case
4 ) Dough band former would extrude the dough blocks into dough band uniformly

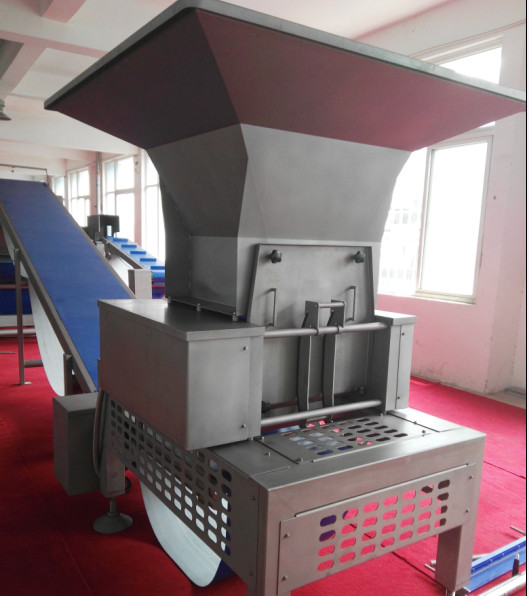

5 ) The mixed dough would be dumped into the cut hopper and been cut into regular pieces

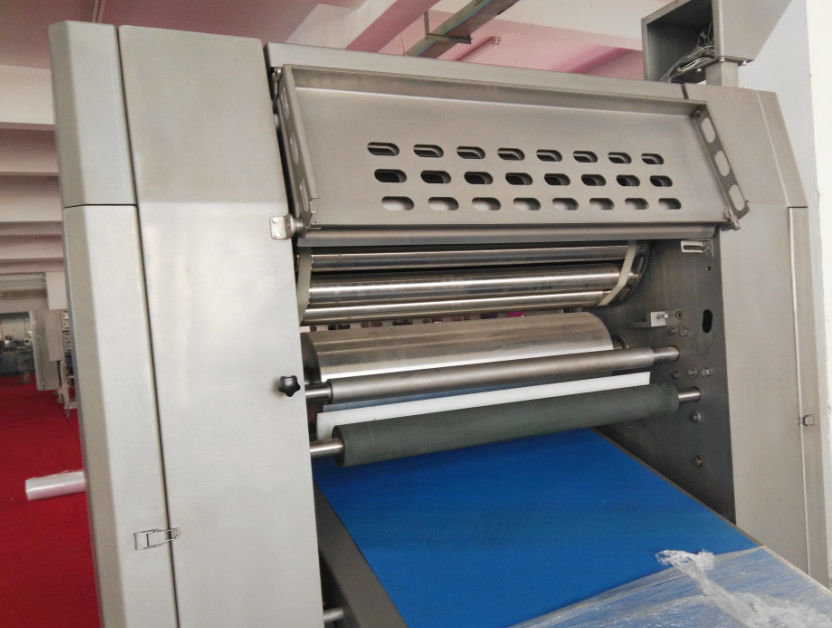

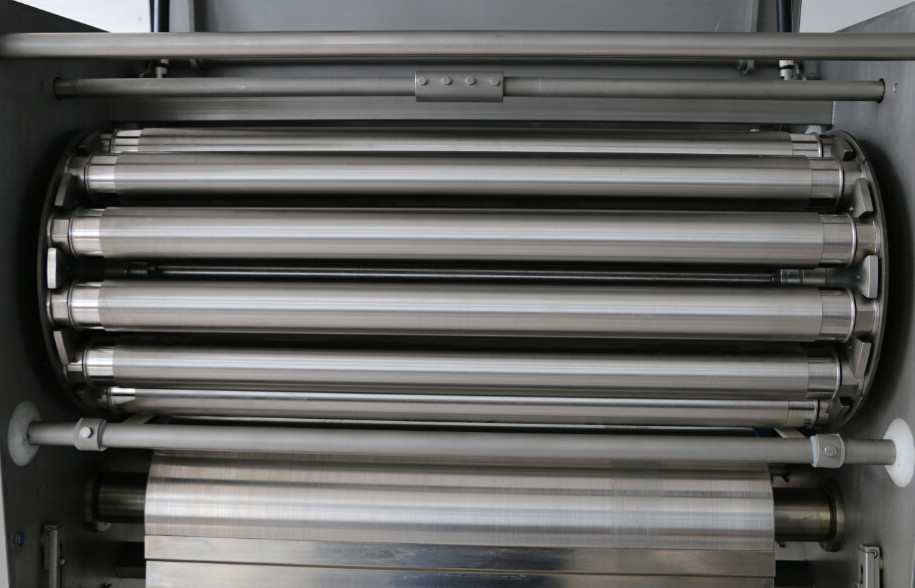

6 ) Sets of multirollers would pressing the dough band to be thinner .
2. Key features
1 ) The working width can be customized according to need ,from 600mm to 900mm
2 ) Net dough band width of this line is 600 mm ,it is customized.
3 ) Donut size is adjustable by changing the cutter .
4 ) Custom-tailor according to your specific demand .
5 ) Two sets of pressing device uniformly press the dough band into certain thickness .
6 ) PLC touch screen control system , and your language is available on the control pannel.
7 ) The proofing box and fried machine are also available if need
