|Place of Origin:||China|
|Model Number:||ZOT 900|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||wooden case package|
|Delivery Time:||within 50 days after deposit|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||3 sets / month|
|Product Name:||Donut Production Line||Capacity:||800 - 15000 Pcs/hr|
|Product Weight:||25g - 60 G||Forming Cutter:||Hexagon|
|Application:||Bread Donut .frozen Donut|

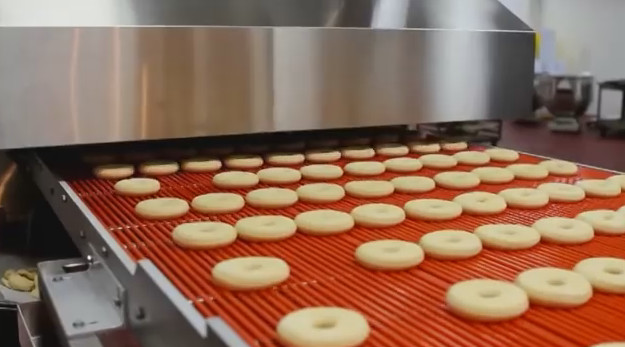

ZDN series donut production line is mainly used to produce semi-finished donut as the frozen donut , the quality of donut is to great extent depend on the quality of dough band , during the dough band sheeting process , we supply wide solution according to need .
1 ) The dough would be mixed by a 5 bag flour volume spiral mixer

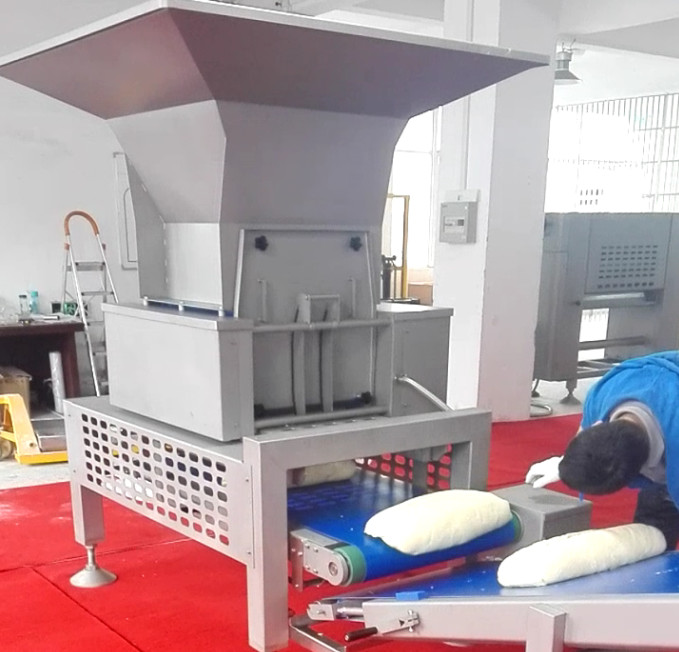

2 ) The mixed dough would be dumped into the cut hopper and been cut into regular pieces

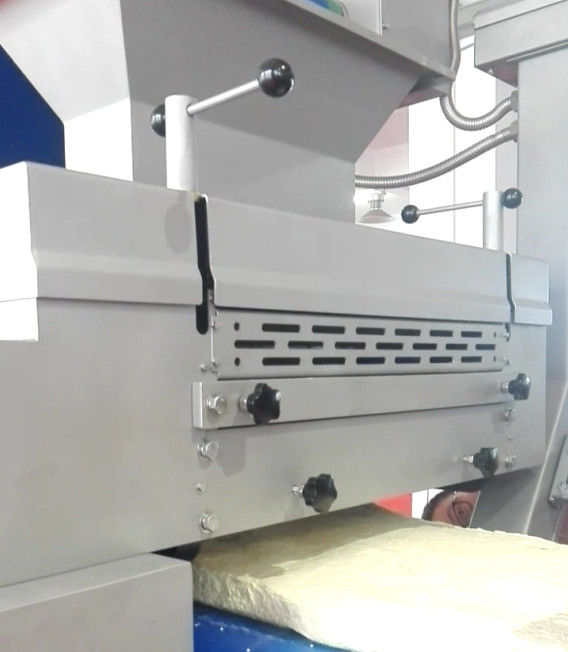

3 ) Dough band former would extrude the dough blocks into dough band uniformly
4 ) The thickness of dough band is adjustable manually

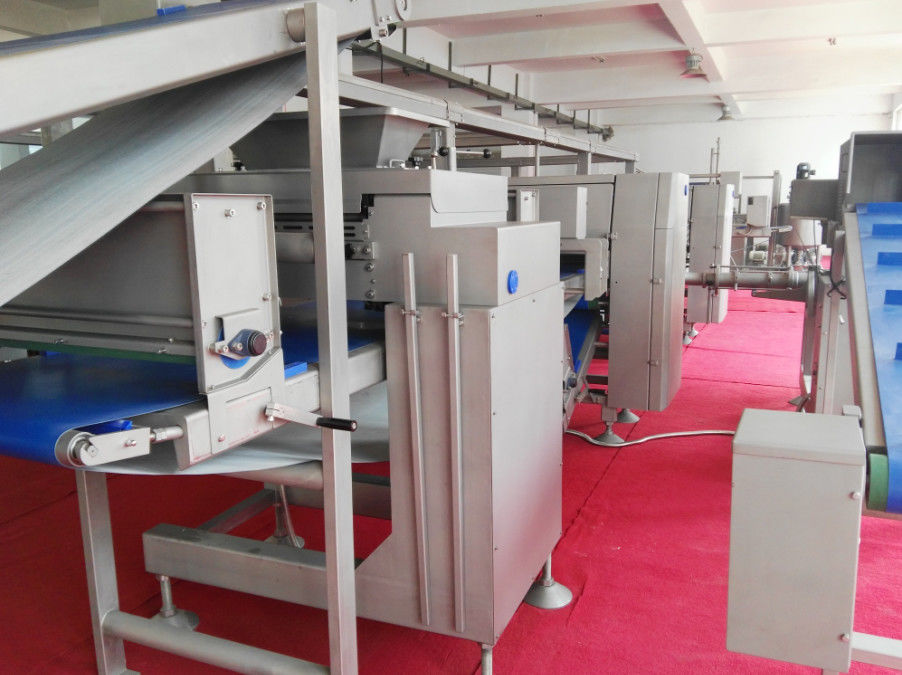

5 ) Sets of multirollers would pressing the dough band to be thinner .
6 ) The number of multirollers can be configured differently for different case
2. Key features
1 ) The working width can be customized according to need ,from 600mm to 900mm
2 ) Net dough band width of this line is 600 mm ,it is customized.
3 ) Donut weight is adjustable by changing the cutter .
4 ) The cutting hopper is used to cut the mixed dough into pieces
5 ) Two sets of pressing device uniformly press the dough band into certain thickness .
6 ) PLC touch screen control system , and your language is available on the control pannel.
7 ) World brand electronic component to ensure the line running quite smoothly .
8 ) Custom-tailor according to your specific demand .
9 ) The proofing box and fried machine are also available if need
304 stainless steel make a robust structure ,the line is extremely solid ,durable and reliable . World brand electronic component to guarantee an outstanding performence and high stability.
Friendly Siemens PLC touch screen .easy to learn and easy to operate ; the line is designed for constant and low maintenances ,and easy to clean .
Supply oversea installation ,commissioning, maintenance ,training and other necessary technical support , spare parts would be sent at the first time .after-sales team always ready to give prompt service .
