304 Stainless Steel Puff Pastry Machine , Automatic Puff Pastry Making Machine

Product Details:
Place of Origin: China
Brand Name: ZLINE
Certification: CE
Model Number: ZKS900
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden package
Delivery Time: 60 days
Payment Terms: L/C, T/T,
Supply Ability: 2 sets per month
Contact Now

Detail Information

Name: Puff Pastry Machine Capacity: 500 - 2500 Kg / H Dough
Drawing: Available Dough Thickness: 2.5 - 10 Mm
Temperature: -15 To -40℃ Adjustable Material: 304 Stainless Steel
Depositing Nozzles: 8 Assembling: Eurapean Standard

Product Description


304 Stainless Steel Puff Pastry Machine , Automatic Puff Pastry Making Machine


1. Production line description


The machine or bread production line consists of main machine,filling machine,blade cutter machine and pinching cutter machine.The bread machine can make pita bread, bread stick,round hamburger bread,cutting bread,jam roll,sandwich bread,lobster bread,
marble bread.The fillings could be jam, chocolate, cream, bean paste, minced meat, paste mixed with small nuts (sesame, corn, peanut).

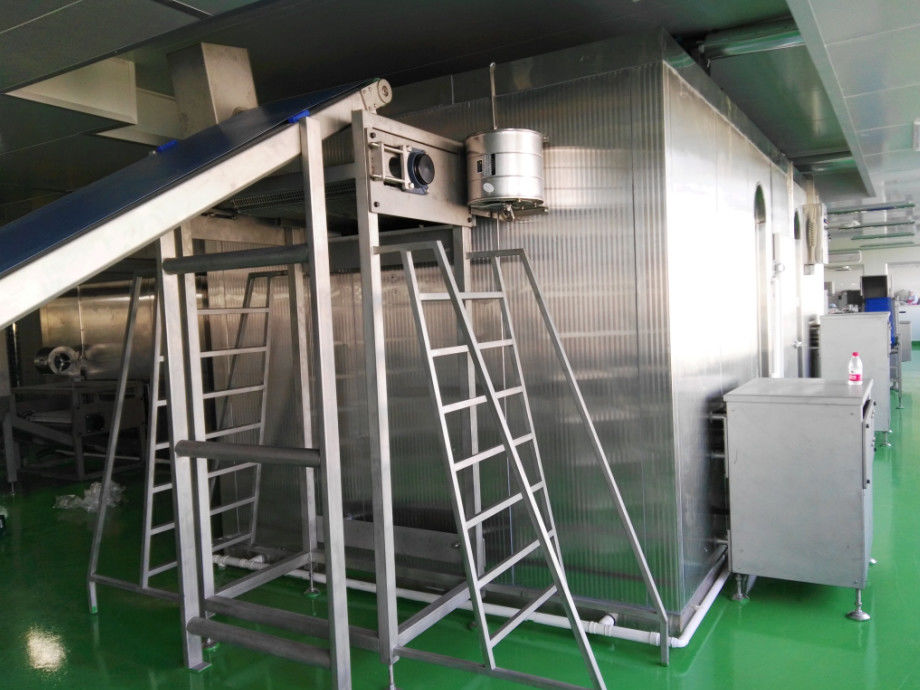

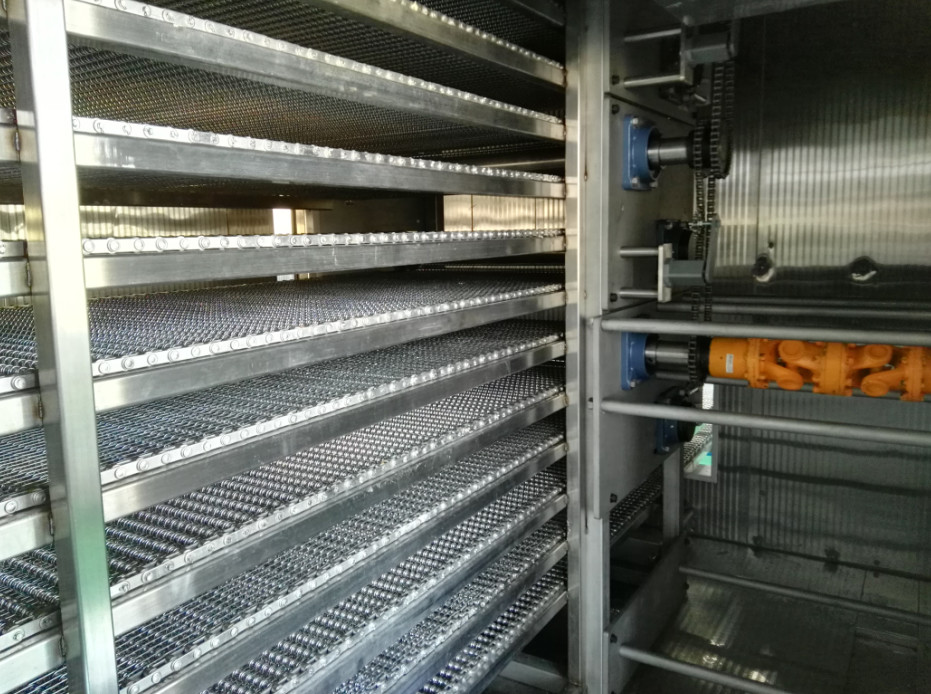

ZKS900 puff pastry machine is industrial line to produce wide various kinds of pastries , like the croissant,sausage roll , apple pie , puff pastry , Danish pastry etc . the line is complete one with 2 sets of freezing tunnels , so that , customers don't need to separately build a freezing room . and the freezing tunnels are optional.


2. Puff pastry machine main parameters :


Capacity  500 - 2500 kg / h dough
Puff pastry dough layers  Max.144 , adjustable
Dough sheet thickness  2.5 - 10 mm
Freezing temperature -15℃ to -40 ℃ different pastry dough requires different temperatyre
IFilling solution Depositing or spraying
Rows  8 , adjustable
Dough sheet width Max.800 mm at the end of the line
Belt width 850 mm at the end of the line
Fat pump Available


3. Key features


1 ) Freezing tunnels are optional , one or two would be available

2 ) Different make-up equipment are available for different puff product .

3 ) Dough sheet thickness and width are adjustable

4 ) The complete line  can be controlled by the PLC touch panel ,altogether or singly .

5 )The line is modular design , different configuration for different product .

6 ) The tunnel oven and cooling tower are also available for complete line project

7 )  The temperature of each freezing tunnel can be adjusted independently .


4. Configuration details


No. Items Brand Country
1 Conveyor belt AiAi PU belt Italy
2 Bearing INA Germany
3 Bearing seat FAG Germany
4 Motor   Germany
5 PLC Siemens Germany
6 Servo motor Siemens Germany
7 Touch screen Siemens UK
8 Frequency convertor Danfoss Germany
9 Swiching power Siemens Switzerland
10 Low- voltage component Schneider France
11 Approach switch Omron Japan
12 Stainless steel 304 China


ZKS900 puff making machine is capable to produce sausage roll , packed or unpacked
