High Durability Pita Making Machine With Tunnel Oven And Cooling System

Product Details:
Place of Origin: China
Brand Name: ZLINE
Certification: CE
Model Number: ZKS900
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden package
Delivery Time: 50 days
Payment Terms: L/C, T/T, D/A
Supply Ability: 5 sets per month
Contact Now

Detail Information

Name: Pita Production Line Capacity: 5000 - 15000 Pcs /hr
Dough Thickness: 2.5 - 5 Mm Pita Size: 150 - 200 Mm Diameter
Material: 304 Stainless Steel Proofing Time: 45 Min
Bking Time: 2 Min Baking Temperature: 350 ℃-500 ℃

Product Description



High Durability Pita Making Machine With Tunnel Oven And Cooling System



1. Production line description



ZKS900 Pita is a kind of popular flatbread in many countries , ZPT 900 pita production line provide the right bakery solution , the line is designed consist of the douhg mixing , pita dough sheeting , pita making-up processes , when customer need , frozen pita base or baking oven are also available .



The pita bread making machine is made of food-grade stainless steel material, with reasonable structure, easy maintenance, easy disassembly and cleaning. Automatic feeding, automatic powder spraying, automatic molding, and automatic peeling.



2. Puff pastry machine main parameters :



Capacity  500 - 2500 kg / h dough
Pita size 100 - 200 mm dia
Dough sheet thickness  2.5 - 10 mm
Pita weight 75 - 150 g
Belt width 850 mm at the end of the line
Rows  4
Dough sheet width Max.800 mm at the end of the line
Baking temperature 250 ℃ - 400 ℃
Baking time  1- 3 min
Baking type Fuel gas - fired
Cooling tower dia 3.8 meters
Cooling time Approx. 25 min , air nature cooling



3. Key features



1 )  The line can be configured differently for different  pita size and thickness .

2 )  The pita cutting roller can be custom-tailor for different shape of pita , round or ellipse .

3 )  Dough sheet thickness can before baking is between 2.5-5 mm .

4 )  The complete line can be controlled by the PLC touch panel ,altogether or singly .

5 )  The normal baking temperature would be 350℃ ,Maximal up to 400℃ .

6 )  The complete pita line is been made by high quality 304 stainless steel .

7 )   The dough scrape can be automatically removed away and recyclable



4. Configuration details



No. Items Brand Country
1 Conveyor belt AiAi PU belt Italy
2 Bearing INA Germany
3 Bearing seat FAG Germany
4 Motor   Germany
5 PLC Siemens Germany
6 Servo motor Siemens Germany
7 Touch screen Siemens UK
8 Frequency convertor Danfoss Germany
9 Swiching power Siemens Switzerland
10 Low- voltage component Schneider France
11 Approach switch Omron Japan
12 Stainless steel 304 China



High Durability Pita Making Machine With Tunnel Oven And Cooling System

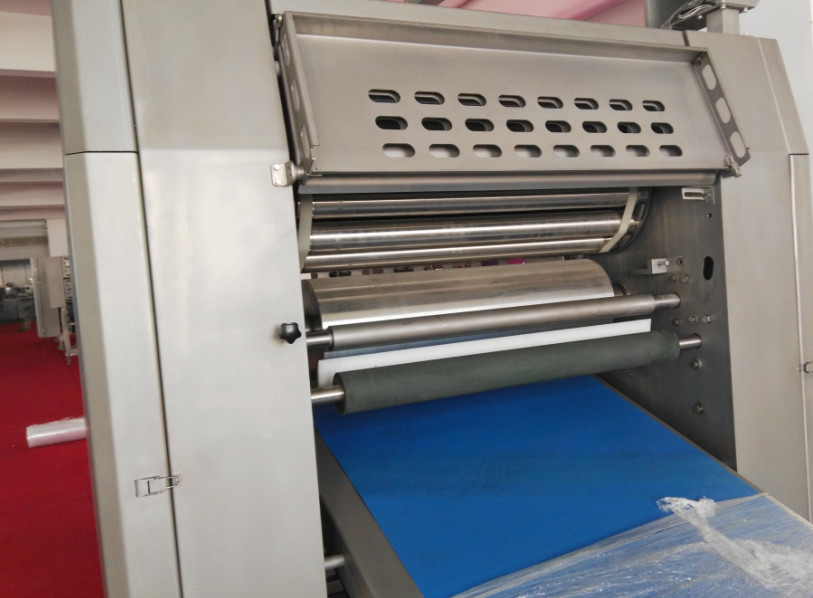

pita line

High Durability Pita Making Machine With Tunnel Oven And Cooling System



Pita production line tunnel oven

High Durability Pita Making Machine With Tunnel Oven And Cooling System
